OSFP 800G HCB
Name: OSFP 800G HCBDescription: The OSFP 800G HCB (Host Compliance Board) is a high-performance solution designed for high-speed interconnect testing, meeting the latest industry standards and requirements. This product offers excellent signal integrity and testing accuracy, making it an ideal choice for 800G network equipment development and validation.
- Outline
- Application
- Documents
OSFP 800G HCB
P/N: FTA0016
High-Performance Host Compliance Board for 800G Network Testing
Product Description

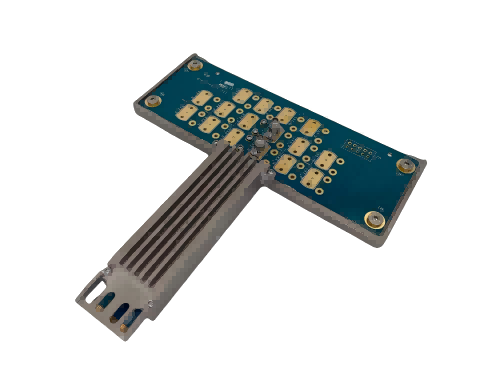

The OSFP 800G HCB (Host Compliance Board) is a high-performance solution designed for high-speed interconnect testing, meeting the latest industry standards and requirements. This product offers excellent signal integrity and testing accuracy, making it an ideal choice for 800G network equipment development and validation.
Applications
Signal Integrity Testing
Used for signal integrity testing of host ports to ensure high-quality data transmission performance. Supports eye diagram, jitter, and noise analysis of high-speed signals.
112G Electrical Protocol Compliance Testing
Supports 112G electrical protocol compliance testing to verify that devices meet industry standards such as IEEE 802.3 and CEI-112G-VSR-PAM4.
Compatibility and Interoperability Testing
Used for compatibility and interoperability testing of electrical interfaces to ensure seamless connectivity between devices and reduce system integration risks.
Product Features
Compliance with Industry Standards
Meets OSFP MSA, IEEE 802.3, and CEI-112G-VSR-PAM4 protocol standards, ensuring broad compatibility and interoperability.
Full-Channel Design
8-channel, 16-pair differential port design provides complete high-speed data transmission capability, supporting 800Gbps total bandwidth.
High-Performance Materials
Utilizes high-performance PCB materials to ensure signal transmission stability and reliability while reducing signal loss and crosstalk.
Consistency Design
Channel-to-channel insertion loss consistency and phase consistency design optimizes signal integrity and improves testing accuracy and repeatability.
S-Parameter Test Curves

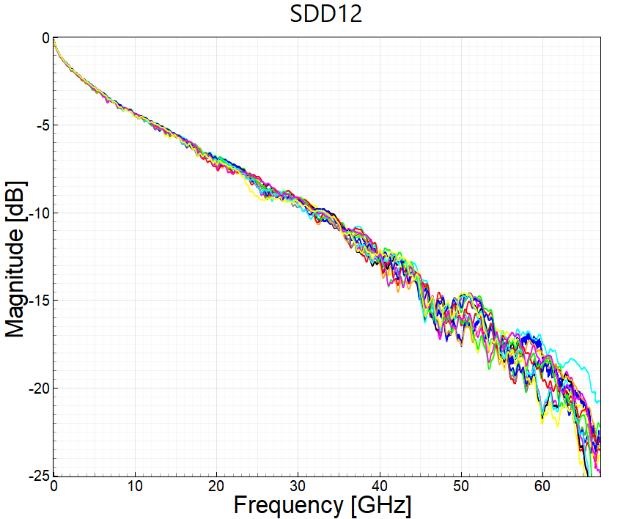

SDD12 Insertion Loss

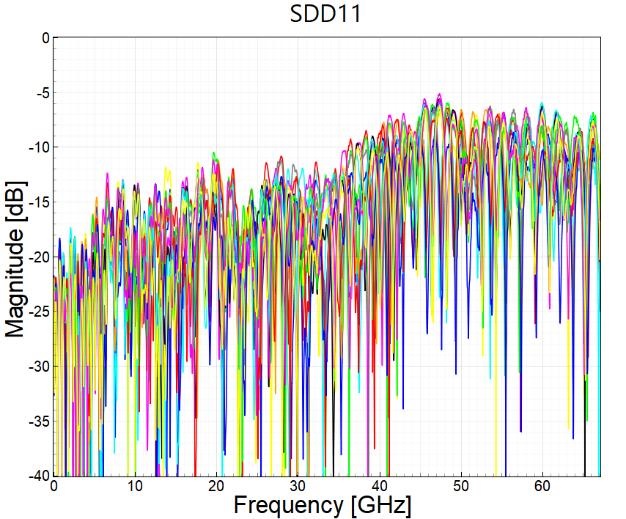

SDD11 Return Loss

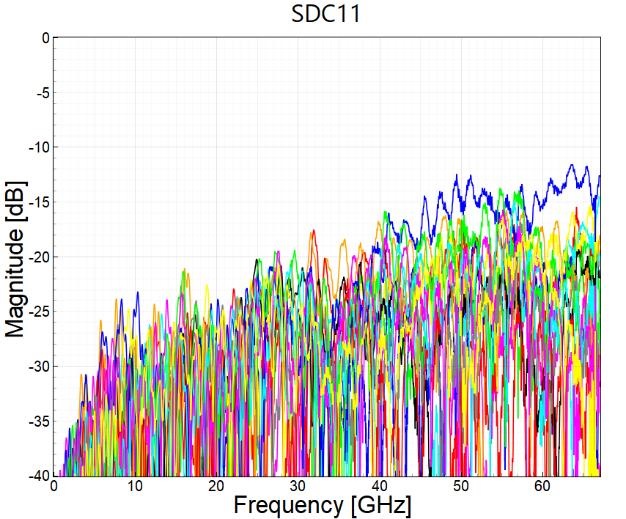

SDC11 Return Loss

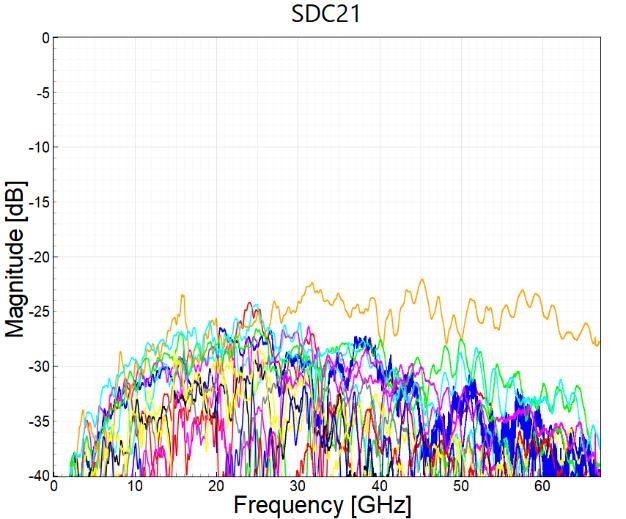

SDC21 Insertion Loss

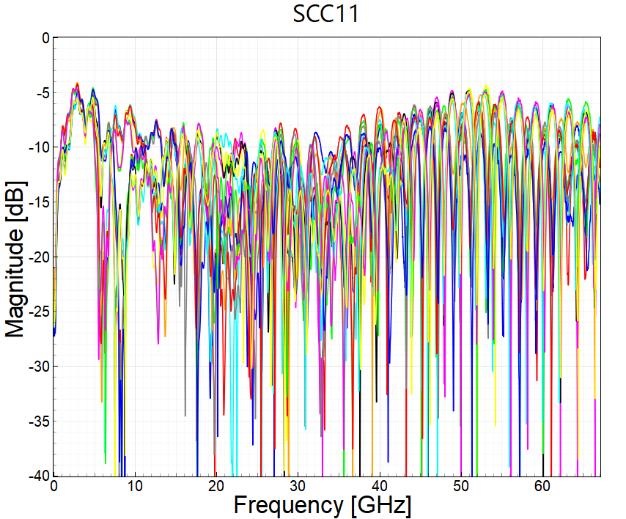

SCC11

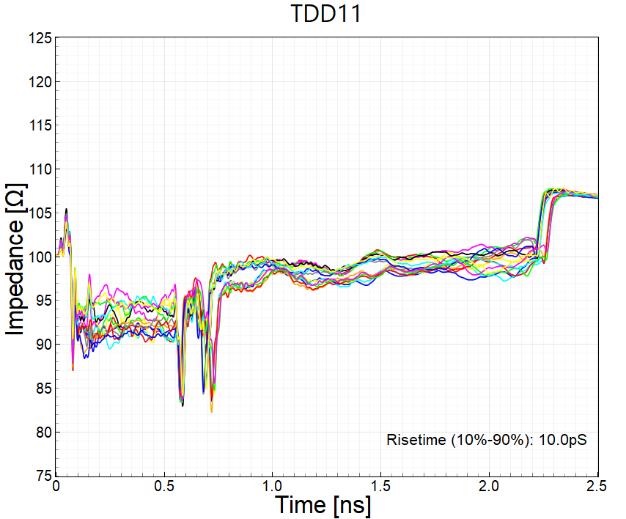

TDR Impedance
Contact Us for More Information
