OSFP 1.6T HCB
Product Model: FTA0031
Product Description
Applications
- Signal integrity testing of host ports
- 224G electrical protocol compliance testing
- Compatibility and interoperability testing of electrical interfaces
Features
Complies with OSFP MSA standard
Complies with IEEE 802.3 and CEI-224G-VSR-PAM4 protocol standards
Full-channel 8-channel 16-pair differential port design, with optional 1.85mm or 1.0mm coaxial interfaces
Uses high-performance PCB materials
Optimized for insertion loss consistency and phase consistency between channels
Test Parameters

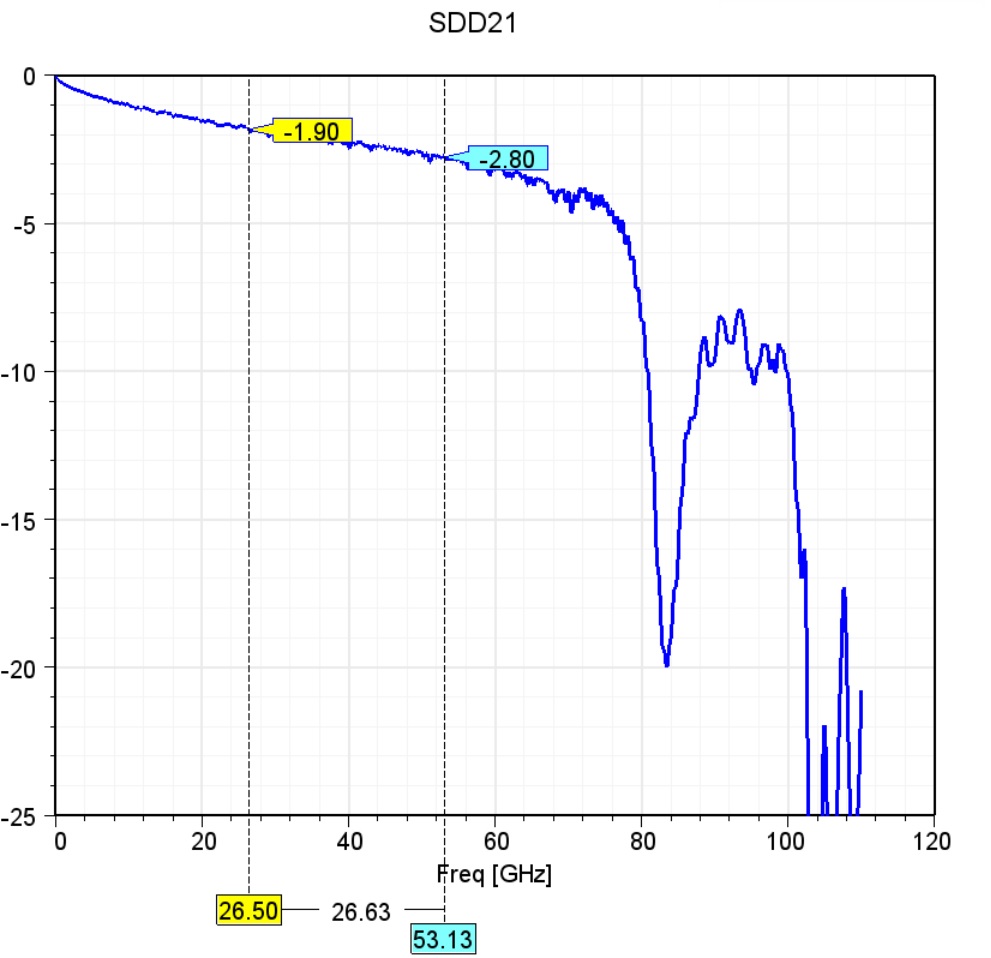

SDD21 Parameter Curve

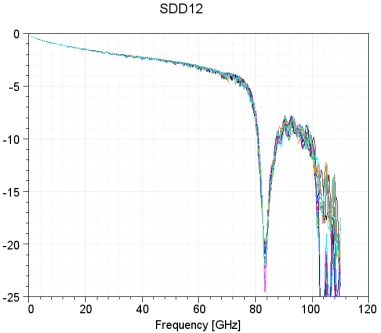

SDD12 Parameter Curve

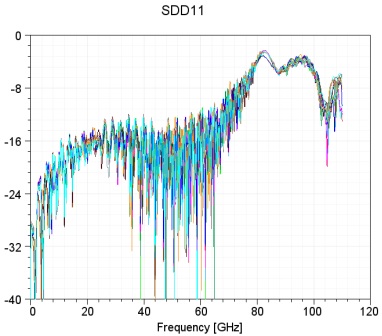

SDD11 Parameter Curve

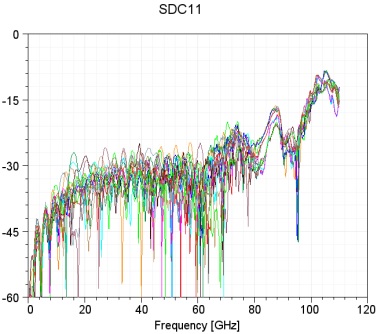

SDC11 Parameter Curve
SDC21 Parameter Curve

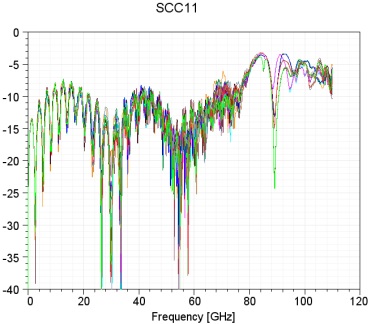

SCC11 Parameter Curve
TDR Parameter Curve
Contact Information
For more detailed information, please contact our sales team:
Telephone: 021-68380250
Email: sales@fin-test.com
Website: www.fin-test.com
