TOSA/ROSA Automtacic RF Test Station
Name: TOSA/ROSA Automtacic RF Test StationDescription: This automated test station is specially designed for testing high-speed optoelectronic devices, including coherent devices and TOSA/ROSA (OSA) packages. The test station is equipped with RF probes that can automatically detect high-speed traces on the substrate or casing of the optoelectronic devices. This automation significantly enhances testing efficiency and ensures the longevity of probe usage.
With precise detection and measurement technologies, the test station can quickly identify and evaluate device performance, providing reliable data support for research and development as well as production. It is well-suited for large-scale and high-precision testing requirements, making it an invaluable tool in the field of optoelectronics.
- Outline
- Application
- Documents
TOSA ROSA RF Automation Testing Solution
Shanghai Fance
Core Solution Features
Fully Automated Testing
Automatic RF and DC probing for end-to-end automated testing
High Compatibility
Compatible with existing test fixtures and platforms
10x Efficiency Boost
Operational efficiency 10 times faster than manual testing
Precision Control
1μm precision control ensures accuracy and consistency
RF Probe Longevity
RF probe lifespan guaranteed for at least 10,000 tests
Visual Monitoring
Dedicated cameras for DC and RF probe monitoring
System Integration
Seamless integration with existing test software
User-Friendly Operation
Intuitive interface with high ROI and cost-effectiveness
Bert Board Support
Full compatibility with Bert Board for advanced testing
Test System Overview
System Views

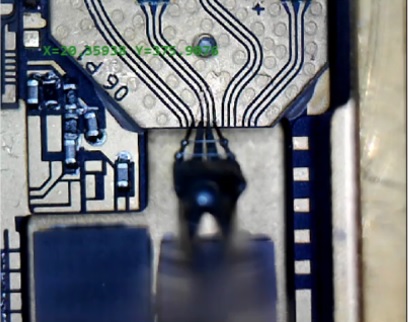

Top View

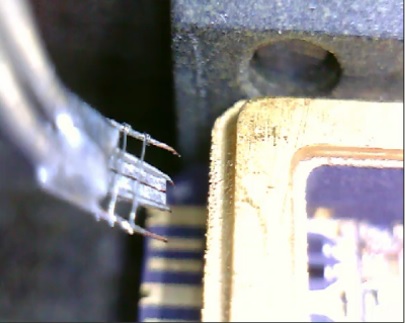

Side View
System Specifications
Dimensions
Compact design: 1200mm × 800mm × 1500mm
Weight: approx. 250kg
Visual Recognition
High-precision alignment system for probes
Resolution: 5μm/pixel
Intelligent Algorithms
Adaptive testing algorithms for optimized workflow
Real-time data analysis and feedback
Operation Workflow
Initialization & Calibration
System self-check
Probe position calibration
Vision system alignment
Test Execution
Automated test execution
Real-time data acquisition
Process monitoring
Result Analysis
Test result analysis
Automated report generation
Data archiving and export
