Fintest 800G BERT Error Tester
Integrated High-Speed Optical Module Test Solution, Designed for 400G/800G Optical Modules and AOC/AEC/DAC Production Testing
Product Overview
Fintest 800G BERT is a high-performance test device that integrates test board and bit error rate tester, supports NRZ and PAM4 encoding, and features multi-channel, high precision, and easy integration, suitable for various test environments including high and low temperatures.
Two-in-One Design
Test board and BERT integrated, saving space, improving test efficiency, and simplifying workflow.
- Compact design saves 75% space
- Integration reduces connection time
- Simplifies maintenance process
Multi-Encoding Support
Comprehensive support for NRZ/PAM4 encoding, meeting diverse testing needs and adapting to various application scenarios.
- NRZ/PAM4 dual-mode support
- Automatic encoding recognition
- Seamless switching technology
Rich Pattern Support
Supports PRBS 7/9/11/13/15/23/31/13Q/31Q and SSPRQ等多种测试码型。
- Full series PRBS support
- SSPRQ advanced pattern
- Custom pattern function
High Precision Testing
Supports 8-channel concurrent testing, with each channel reaching up to 53.125 GBd, ensuring test accuracy.
- 8-channel synchronous testing
- 53.125 GBd high speed
- Sub-picosecond precision
Wide Temperature Adaptability
Can be integrated into -30°C to 125°C high and low temperature test environments, adapting to various harsh conditions.
- -30°C to 125°C operating range
- Temperature adaptive calibration
- Industrial-grade stability
User-Friendly Software
Equipped with graphical operation interface, supports automatic bit error rate collection and export, simplifying data analysis.
- Intuitive graphical interface
- One-click test process
- Automatic report generation
Technical Specifications
| Item | Specification |
|---|---|
| Number of Channels | 8 channels |
| Modulation Method | NRZ / PAM4 |
| Data Rate per Channel (GBd) | 24.33024, 25.78125, 26.5625, 51.5625, 53.125 |
| Supported Patterns | PRBS 4/7/9/11/13/15/23/31/58, SSPRQ |
| Maximum Amplitude (mVppd) | 600 |
| Rise/Fall Time (20-80%) | 15 ps |
| Jitter (RMS) | 0.6 ps |
| Input Sensitivity (mVppd) | 25 |
| PC Interface | USB |
| Power Supply | DC 3.3V |
| Dimensions (W × H × D) | 187 mm × 63 mm × 217 mm |
| Weight | 1.5 Kg |
Application Scenarios
800G/400G Optical Module Production Testing
AOC Active Optical Cable Performance Verification
Data Center and High-Speed Communication Equipment Testing
High/Low Temperature Environment Reliability Testing
Usage Process
Connect Device
Insert the cable to be tested, connect USB to computer, power on the mainboard and optical module
Start System
Turn on the fan (recommended gear 1 or 2), start power and switch
Identify Device
Wait for device manager to recognize virtual COM port
Run Software
Open "Fintest800GBert.exe", follow the interface guidance for bit error rate testing
Save Data
Test results are automatically saved to "datalog.csv", supporting multiple continuous tests
Product Showcase

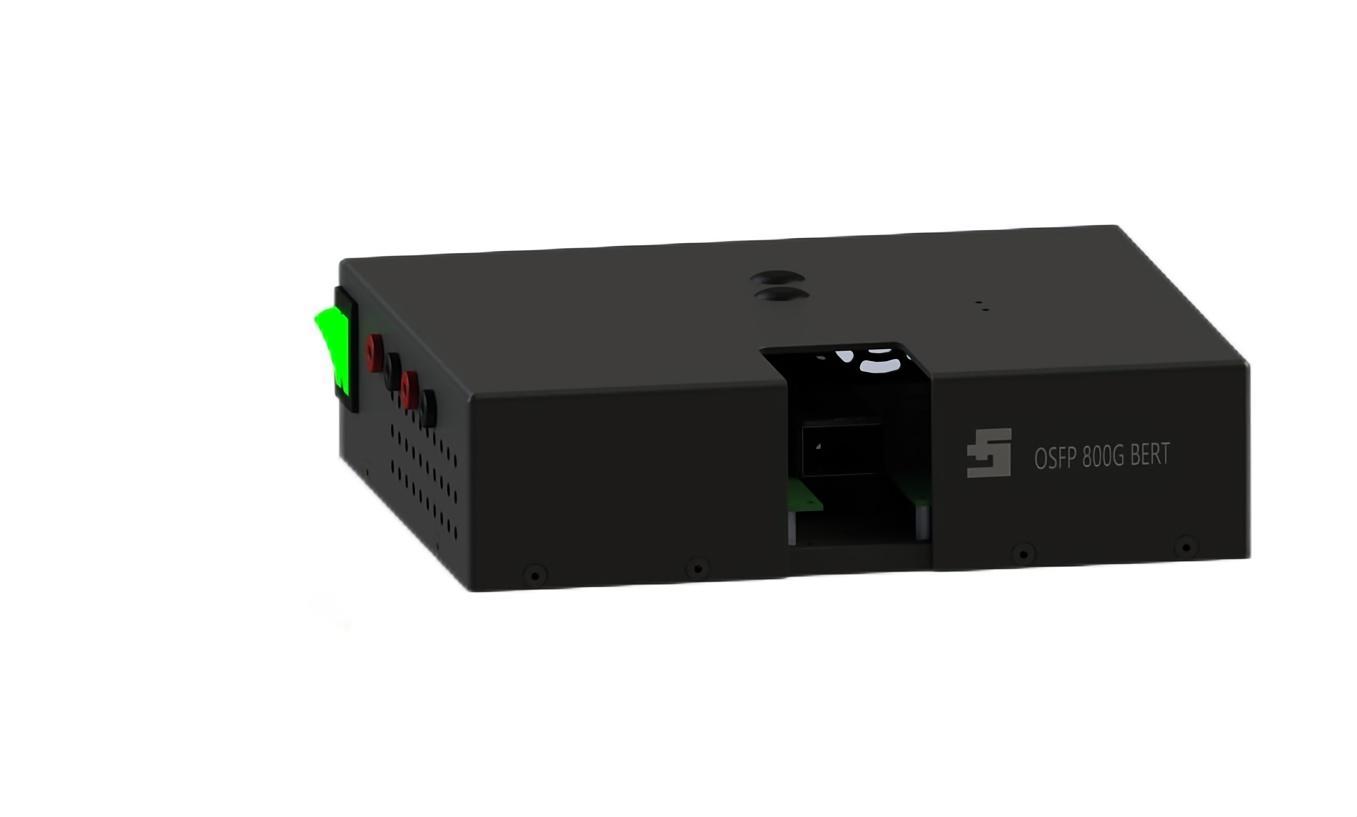

Device Design
Fintest 800G BERT adopts a compact design, integrating test board and BERT functions, with a simple and elegant appearance suitable for various test environments.
- Compact design, space saving
- High-quality metal casing, durable
- User-friendly interface layout, easy to connect

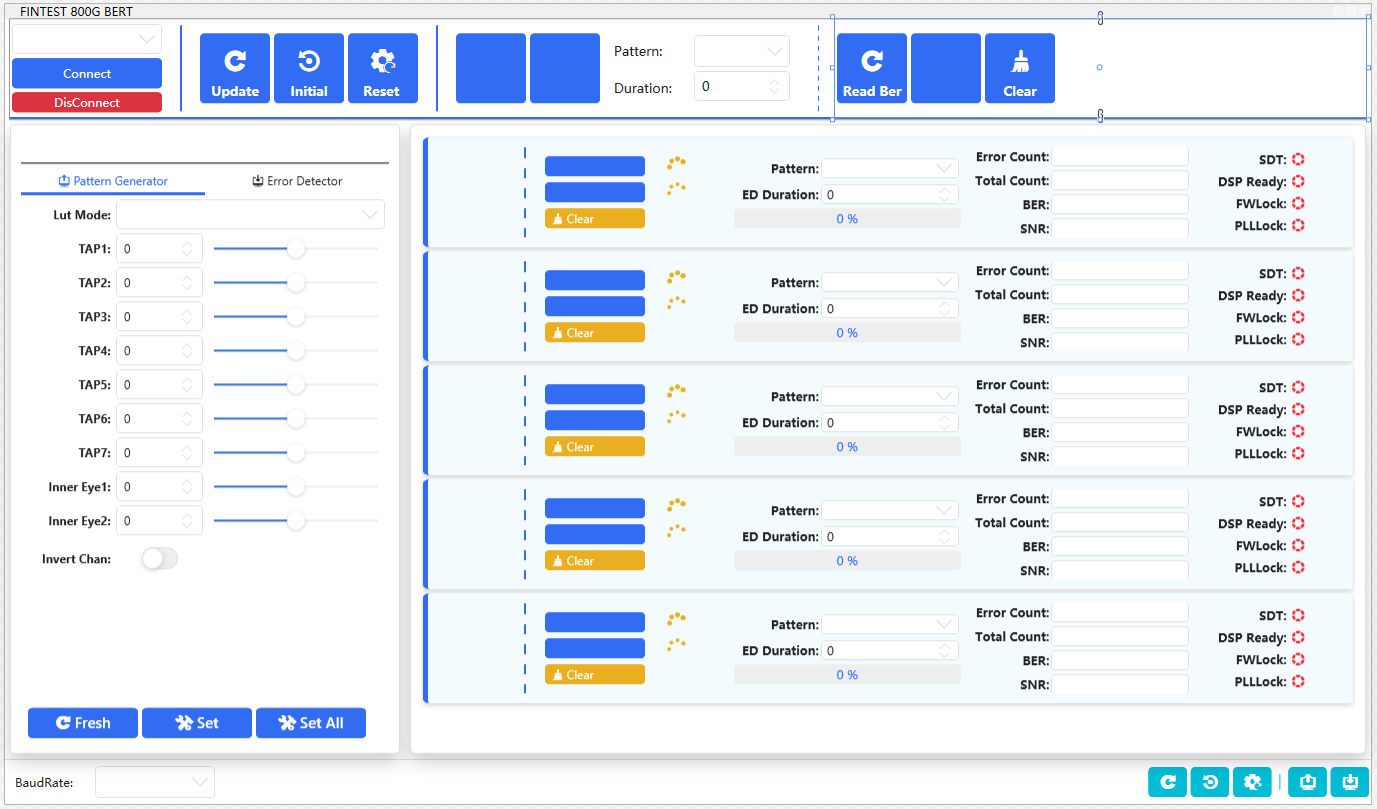

Software Interface
Equipped with graphical operation interface, supports automatic bit error rate collection and export, simplifying data analysis process and improving test efficiency.
- Intuitive graphical user interface
- One-click test process
- Real-time data monitoring and analysis
Application Scenario

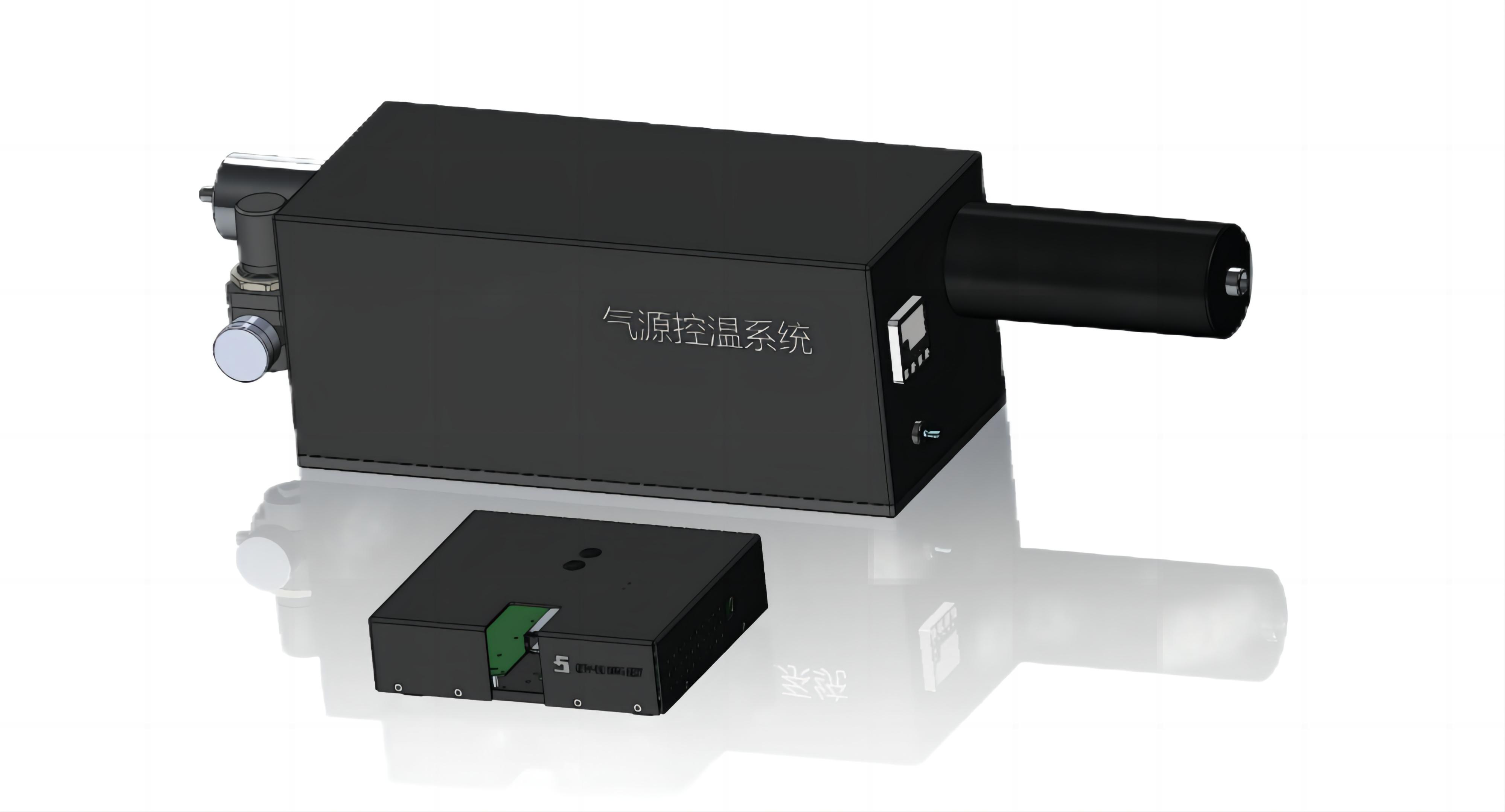

Can be integrated into -30°C to 125°C high and low temperature test environments, adapting to various harsh conditions to ensure device reliability in various environments.
- Wide temperature range: -30°C to 125°C
- Industrial-grade stability design
- Multiple environmental adaptability tests
