QSFP-DD 800G MCB
Now: Products > QSFP-DD 800G MCB
Name: QSFP-DD 800G MCBDescription: The QSFP-DD 800G MCB is a high-performance testing fixture which is designed specifically for OSFP 800G optics, AOCs (Active Optical Cables), AEC and DACs (Direct Attach Cables)
- Outline
- Application
- Documents

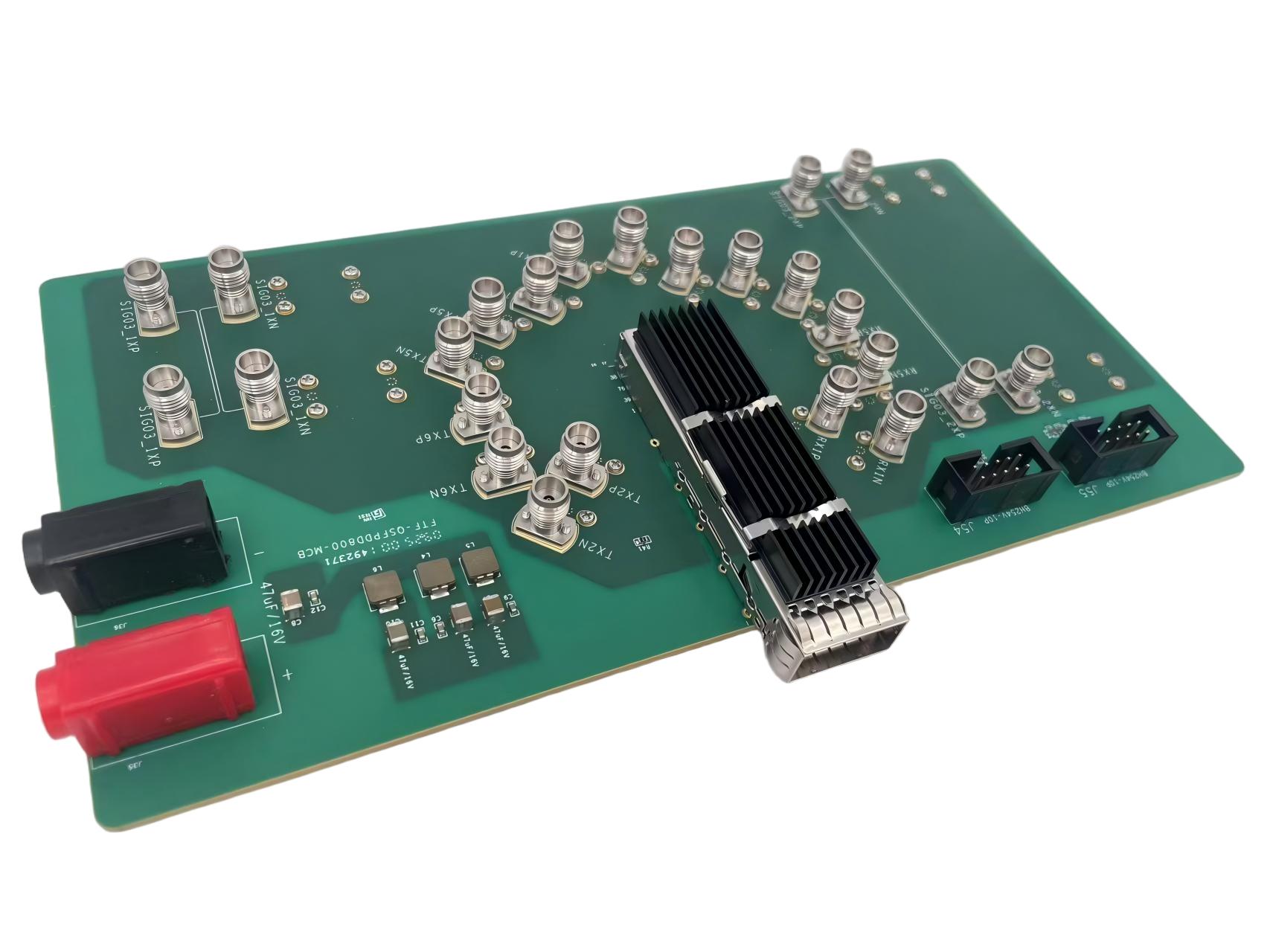

QSFP-DD 800G MCB
P/N: FTA0019
Product Description
Applications
- Signal integrity testing for QSFP-DD 800G optical modules, AOC ,AEC and DAC cable
- 112G electrical protocol compliance testing
- Electrical interface compatibility and interoperability testing
Features
Compliant with QSFP-DD MSA standard
Compliant with IEEE 802.3 and CEI-112G-VSR-PAM4 protocol standards
Full 8-channel 16 differential port design
High-performance PCB material
Inter-channel loss consistency and phase consistency design
2.4mm RF connector, 1.85mm RF connector optional
I2C control interface
Test Parameters

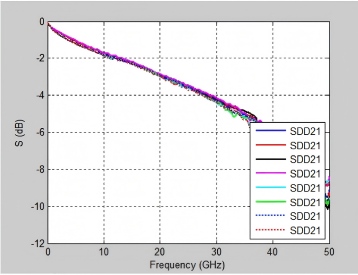

SDD21 Parameter Curve

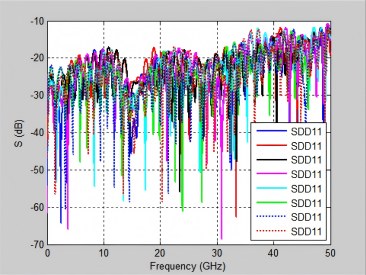

SDD11 Parameter Curve
