OSFP 800G MCB FTA0017

Now: Products > OSFP 800G MCB FTA0017

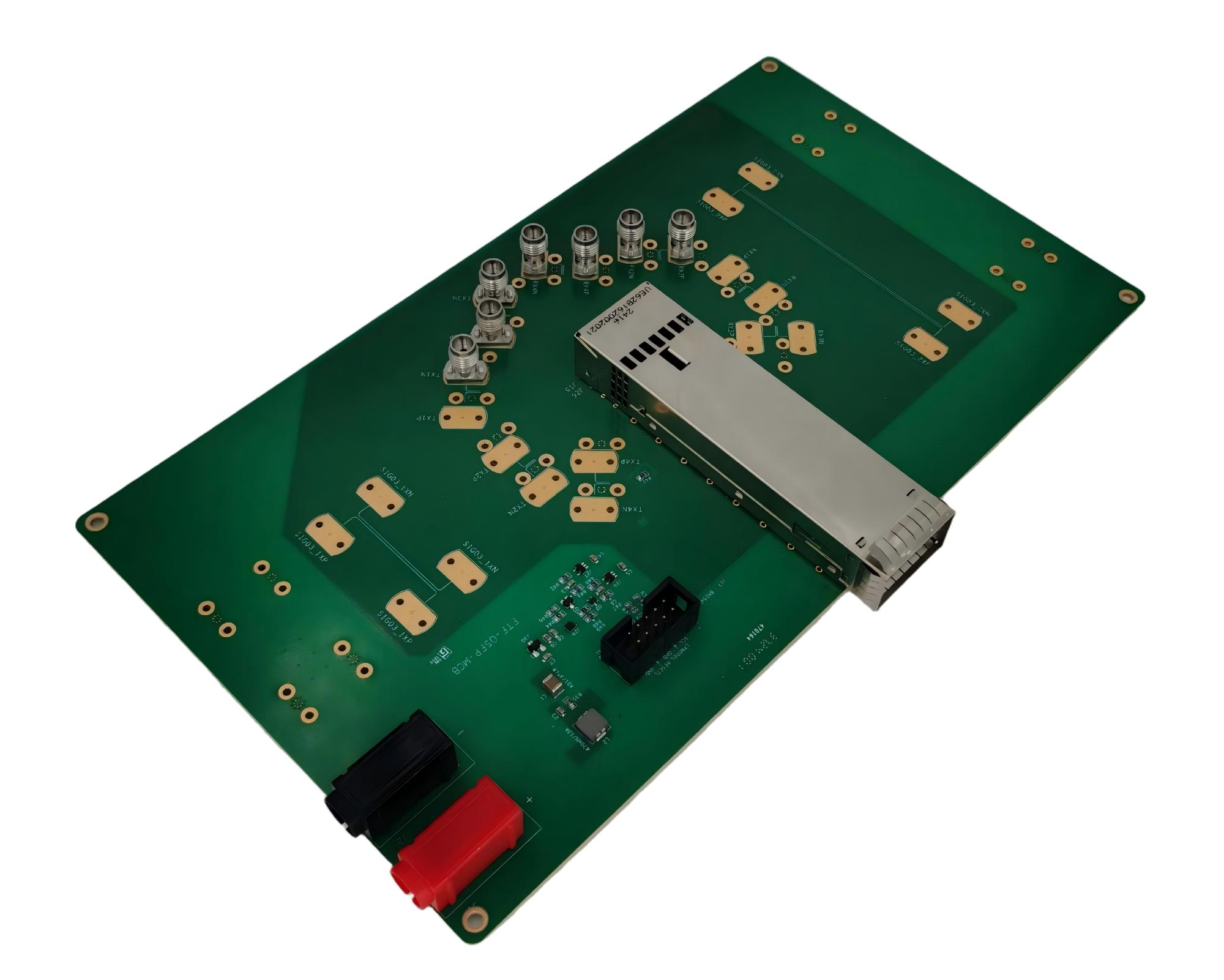

Name: OSFP 800G MCB FTA0017Description: The OSFP-DD 800G MCB (Host Compliance Board, P/N: FTA0017) is a high-performance testing device designed specifically for OSFP 800G optics, AOCs (Active Optical Cables), and DACs (Direct Attach Cables), delivering exceptional signal integrity testing, 112G electrical protocol compliance, and electrical interface compatibility verification. Equipped with high-performance PCB and 2.4mm/1.85mm RF connectors, this product complies with OSFP MSA, IEEE 802.3ck, and CEI-112G-VSR-PAM4 standards, making it the ideal choice for next-generation data centers and 5G networks.

  • Outline
  • Application
  • Documents
Key Features

  • Industry Standard Compliance:

OSFP MSA,
Meet IEEE 802.3ck, and CEI-112G-VSR-PAM4 standards
Ensuring compatibility with 800G Ethernet.

  • High-Density Design:

Features a full 8-channel, 16-pair differential port
Supporting 112G PAM4 signal testing.

  • Superior Performance:

Utilizes high-performance PCB materials
Optimizing inter-channel differential loss and skew consistency

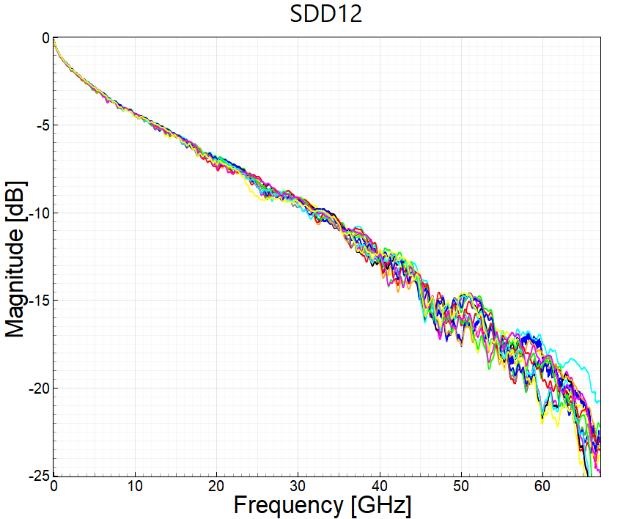

Insertion loss below 2.7 dB
Bit Error Rate (BER) under 10⁻¹²
Crosstalk control better than -40 dB

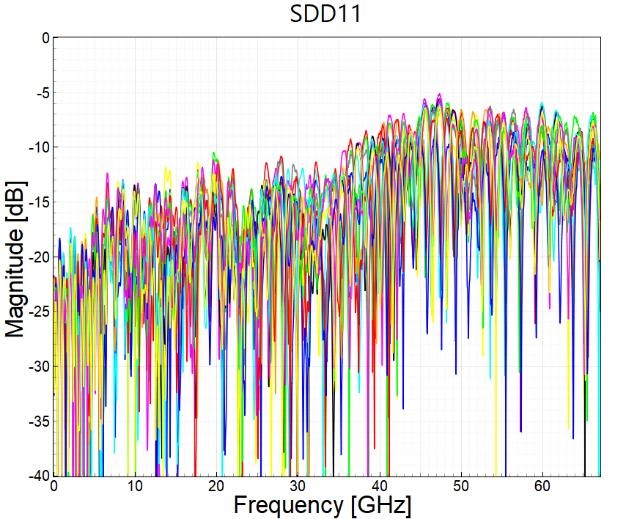

Return loss exceeding -15 dB
channel skew less than 10 ps

  • Flexible Connectivity:

Comes standard with 2.4mm RF connectors, with optional 1.85mm RF connectors
integrates an I2C control interface for precise test configuration.

  • Reliability:

Ensuring signal integrity
Applications

  • OSFP 800G Optics Signal Integrity Testing
  • AOC and DAC Component Performance Verification
  • 112G Electrical Protocol Compliance Testing (e.g., PAM4 modulation)
  • Electrical Interface Compatibility and Interoperability Testing
    It is especially suited for AI data centers, 5G infrastructure, and high-density 800G Ethernet deployments.
Why Choose OSFP-DD 800G MCB?
  • Supports AI and 5G Demands: Meets ultra-high bandwidth and low-latency testing needs, driving next-generation network innovation.
  • High-Precision Testing: Ensures signal integrity and protocol compliance, minimizing testing errors.
  • Customizable Support: Contact us for detailed test parameters tailored to specific use cases.
