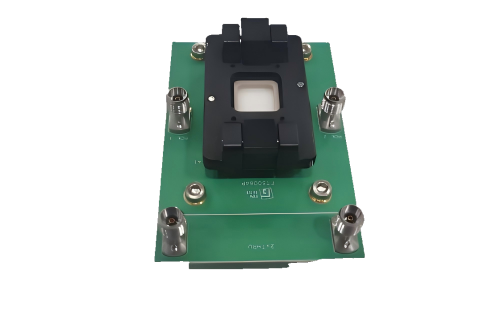

Millimeter Wave Antenna Test Socket

Key Product Features

• Ultra-low Transmission Loss

  Adopts high-precision RF contact design with insertion loss <0.3dB in millimeter wave band, ensuring test signal integrity and improving measurement accuracy

• High Repeat Positioning Accuracy

  Mechanical positioning accuracy up to ±0.01mm, with repeat connection consistency <0.05dB, meeting high stability testing requirements in mass production environments

• Modular Adaptation Design

  Supports quick replacement of test probe modules, compatible with 12mm/8mm/6mm and other antenna sizes, reducing equipment investment costs

• Ultra-long Service Life

  Uses wear-resistant precious metal contacts with a single connection life >100,000 cycles, significantly reducing the frequency of consumable replacement in mass production testing

Core Parameters Overview

The product has undergone rigorous testing and verification, with all performance indicators reaching industry-leading levels to ensure the accuracy and reliability of test data

Product Core Components

High-quality materials and precision machining ensure signal transmission stability and mechanical structure reliability in the millimeter wave band

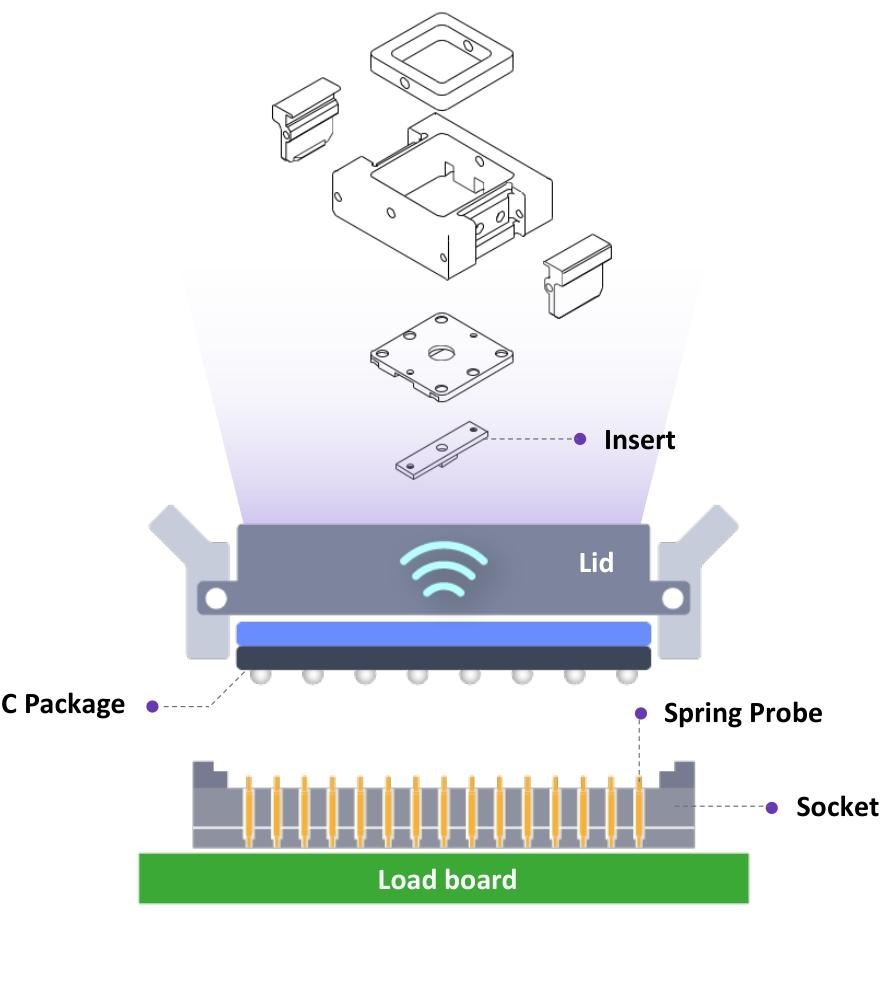

Millimeter Wave Antenna Test Socket Overall Structure

The device consists of four core components: high-precision mechanical positioning platform (ensuring ±0.01mm repeatability), replaceable RF probe module (supporting multi-model antenna testing), precious metal contact system (ensuring low-loss transmission and long life), and integrated shielding enclosure (reducing electromagnetic interference). The top features a quick-change卡扣 structure enabling probe replacement within 30 seconds; the bottom is equipped with a standardized mounting interface compatible with mainstream test equipment and automation platforms. The overall structure uses aviation-grade aluminum alloy, balancing lightweight design with structural stability.

Performance Test Charts

The following are visual charts of key performance tests, intuitively presenting the socket's transmission characteristics and connection stability in the millimeter wave band

Millimeter Wave Band Transmission Performance Test Chart

Test Highlights: Transmission performance test in DC-110GHz full band, including insertion loss (S21) and return loss (S11) characteristic curves. Tests show insertion loss <0.3dB at 60GHz and <1.2dB at 110GHz, with return loss >20dB across all bands, meeting the stringent signal integrity requirements of high-precision antenna testing.

Typical Application Scenarios

• 5G/6G millimeter wave antenna array R&D testing
• Automotive radar antenna mass production calibration and performance testing
• Smart home millimeter wave sensor consistency testing
• Satellite communication phased array antenna unit testing
• Millimeter wave imaging system antenna performance evaluation
• Consumer electronics millimeter wave antenna automated testing
• Radar seeker antenna parameter calibration
• Millimeter wave antenna beamforming verification testing

Technical Support and Services

• Complete Technical Documentation: Provides detailed installation guides, maintenance manuals, RF performance reports and compatibility test data
• Customized Design: Provides customized RF socket solutions according to customer antenna size and testing requirements
