矩形波导到同轴转接器-WR22~WR650 Top Launch
您的位置：产品应用及指南 > 矩形波导到同轴转接器-WR22~WR650 Top Launch
名称：矩形波导到同轴转接器-WR22~WR650 Top Launch描述：矩形波导到同轴转接器，覆盖WR22到WR650波导尺寸及不同波导到各类同轴连接器之间的转换。。有铝制，铜制，不锈钢等等材料。驻波性能优异。
- 概述
- 技术文件
|
|
|||||||||||||
|
波导牌号 |
频率（GHz） |
VSWR （Max.) |
功率容量 |

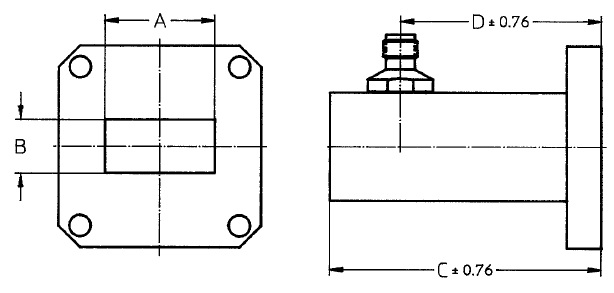

尺寸(mm) |
标准法兰 |
材质 |
备注 |
型号 |
|||||
|
EIA（WR） |
DEF（WG） |
IEC（R） |
|
|
连续波(W) |
峰值(KW) |
A |
B |
C |
|
|
|
|
|
650 |
6 |
14 |
1.12~1.70 |
|
|
|
165.10 |
82.55 |
|
UG418A/U,UG1720U |
铝/铜 |
|
WA-R650-XX01 |
|
510 |
7 |
18 |
1.45~2.20 |
|
|
|
129.54 |
64.77 |
|
UG1717U/,UG1715/U |
铝/铜 |
|
WA-R510-XX01 |
| 430 |
8 |
22 |
1.70~2.60 |
|
|
|
109.22 |
54.61 |
|
UG1711/U,UG1716/U |
铝/铜 |
|
WA-R430-XX01 |
|
340 |
9A |
26 |
2.20~3.30 |
|
|
|
86.36 |
43.18 |
|
UG1713/U,UG1712/U |
铝/铜 |
|
WA-R340-XX01 |
|
284 |
10 |
32 |
2.60~3.95 |
1.10 |
250 |
8 |
72.136 |
34.036 |
203.2 |
UG1724/U,UG1725/U |
铝/铜 |
WA-R284-XX01 |
|
|
284 |
10 |
32 |
2.60~3.95 |
1.35 |
1000 |
20 |
72.136 |
34.036 |
203.2 |
UG1725/U |
铝/铜 | 高功率 |
WA-H284-XX01 |
|
229 |
11A |
40 |
3.30~4.90 |
1.10 |
250 |
8 |
58.166 |
29.083 |
177.8 |
UG1726/,UG1727/U |
铝/铜 |
WA-R229-XX01 |
|
|
229 |
11A |
40 |
3.30~4.90 |
1.35 |
1000 |
20 |
58.166 |
29.083 |
177.8 |
UG1726/U,UG1727/U |
铝/铜 |
高功率 |
WA-H229-XX01 |
|
187 |
12 |
48 |
3.95~5.85 |
1.10 |
250 |
8 |
47.549 |
22.149 |
152.4 |
UG1728/U,UG1729/U |
铝/铜 |
WA-R187-XX01 |
|
|
187 |
12 |
48 |
3.95~5.85 |
1.35 |
1000 |
20 |
47.549 |
22.149 |
152.4 |
UG1728/U,UG1729/U |
铝/铜 |
高功率 |
WA-H187-XX01 |
|
159 |
13 |
58 |
4.90~7.05 |
1.10 |
250 | 8 |
40.386 |
20.193 |
127.0 |
UG1730U,UG1731/U | 铝/铜 |
WA-R159-XX01 |
|
|
159 |
13 |
58 |
4.90~7.05 |
1.35 |
750 |
16 |
40.386 |
20.193 |
127.0 |
UG1730/U,UG1731/U |
铝/铜 |
高功率 |
WA-H159-XX01 |
|
137 |
14 |
70 |
5.85~8.20 |
1.10 |
250 | 8 |
34.849 |
15.799 |
114.3 |
UG1732/U,UG1733/U |
铝/铜 |
WA-R137-XX01 |
|
|
137 |
14 |
70 |
5.85~8.20 |
1.35 |
500 |
14 |
34.849 |
15.799 |
114.3 |
UG1732/U,UG1733/U |
铝/铜 |
高功率 |
WA-H137-XX01 |
|
112 |
15 |
84 |
7.05~10.0 |
1.05/1.10 |
250 |
8 |
28.499 |
12.624 |
101.6 |
UG138/U,UG51/U |
铝/铜 |
|
WA-R112-XX01 |
|
102 |
|
|
7.00~11.0 |
1.10 |
250 |
8 |
25.908 |
12.954 |
88.9 |
UG1493/U |
铝/铜 |
高功率 |
WA-R102-XX01 |
|
96 |
|
|
7.00~17.0 |
1.35 |
250 |
4 |
24.511 |
8.128 |
141 |
|
铝/铜 |
|
WA-R096-XX01 |
|
90 |
16 |
100 |
8.20~12.4 |
1.05/1.10 |
250 |
8 |
22.860 |
10.160 |
76.2 |
UG39/U,UG135/U |
铝/铜 |
|
WA-R090-XX01 |
|
90 |
16 |
100 |
8.20~12.4 |
1.35 |
450 |
10 |
22.860 |
10.160 |
76.2 |
UG39/U,UG135/U |
铝/铜 |
高功率 |
WA-H090-XX01 |
|
75 |
17 |
120 |
10.0~15.0 |
1.05/1.10 |
250 |
7 |
19.050 |
9.525 |
55.9 |
UBR120 |
铝/铜 |
WA-R075-XX01 |
|
|
75 |
17 |
120 |
10.0~15.0 |
1.35 |
400 |
8 |
19.050 |
9.525 |
55.9 |
UBR120 |
铝/铜 |
高功率 |
WA-H075-XX01 |
|
67 |
|
|
11.0~17.0 |
1.10 |
200 |
6 |
16.967 |
8.636 |
55.9 |
|
|
|
WA-R067-XX01 |
|
62 |
18 |
140 |
12.40~18.0 |
1.05/1.10 |
200 |
6 |
15.799 |
7.899 |
58.4 |
UG1665/U,UG419/U |
铝/铜 |
|
WA-R062-XX01 |
|
51 |
19 |
180 |
15.0~22.0 |
1.10 |
200 |
6 |
12.954 |
6.477 |
38.1 |
UBR180 |
铝/铜 |
WA-R051-XX01 |
|
|
42 |
20 |
220 |
18.0~26.5 |
1.10 |
50 |
4 |
10.668 |
4.318 |
38.1 |
UG595/U |
铝/铜 |
WA-R042-XX01 |
|
|
34 |
21 |
260 |
22.0~33.0 |
1.10 |
50 |
4 |
8.636 |
4.318 |
38.1 |
UBR260 |
铝/铜 |
WA-R034-XX01 |
|
|
28 |
22 |
320 |
26.5~40.0 |
1.10 |
10 |
1 |
7.112 |
3 .556 |
38.1 |
UBR320 |
铝/铜 |
WA-R028-XX01 |
|
|
22 |
23 |
400 |
33~50 |
1.10 |
10 |
1 |
5.690 |
2.845 |
38.1 |
U383/U |
铝/铜 |
|
WA-R022-XX01 |
